Haven Dining Table & 4 Chairs Plan

Build a complete dining set: a 60-inch plank table and four matching slat-back chairs. It's all made from 2x4 and 1x4 lumber with screws, with no special joinery.

This is a digital DIY plan (PDF), not a finished product. You get clear, beginner-friendly drawings and instructions to build it yourself.

Plan details

• Overall size: Table 60" W x 28" D x 31.5" H
• Skill level: Beginner
• Estimated build time: 4–6 hours
• Format: 18-page PDF, 8.5" x 11", imperial units (feet & inches)

What's included

• Cover sheet with size, skill level and build time

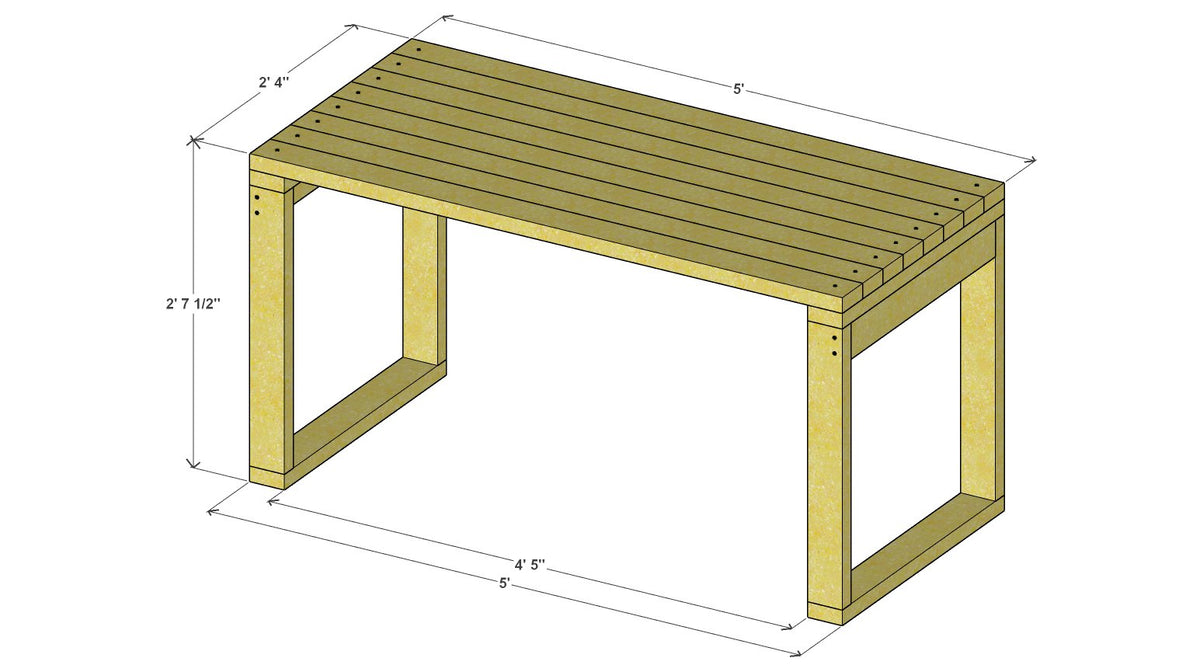

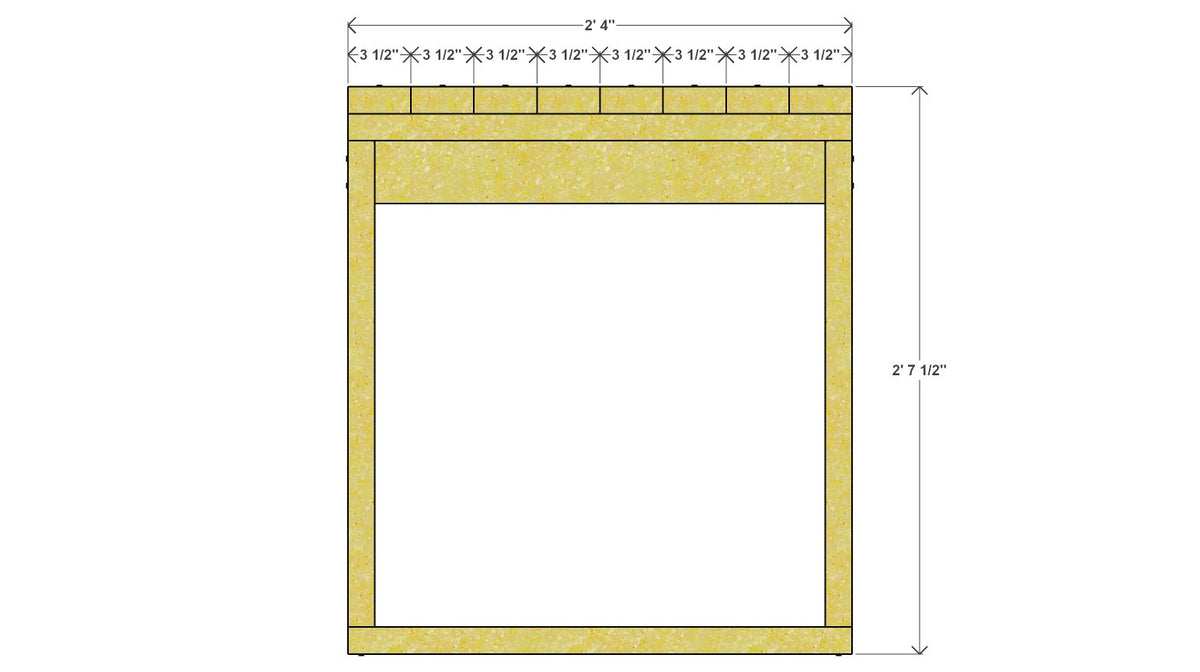

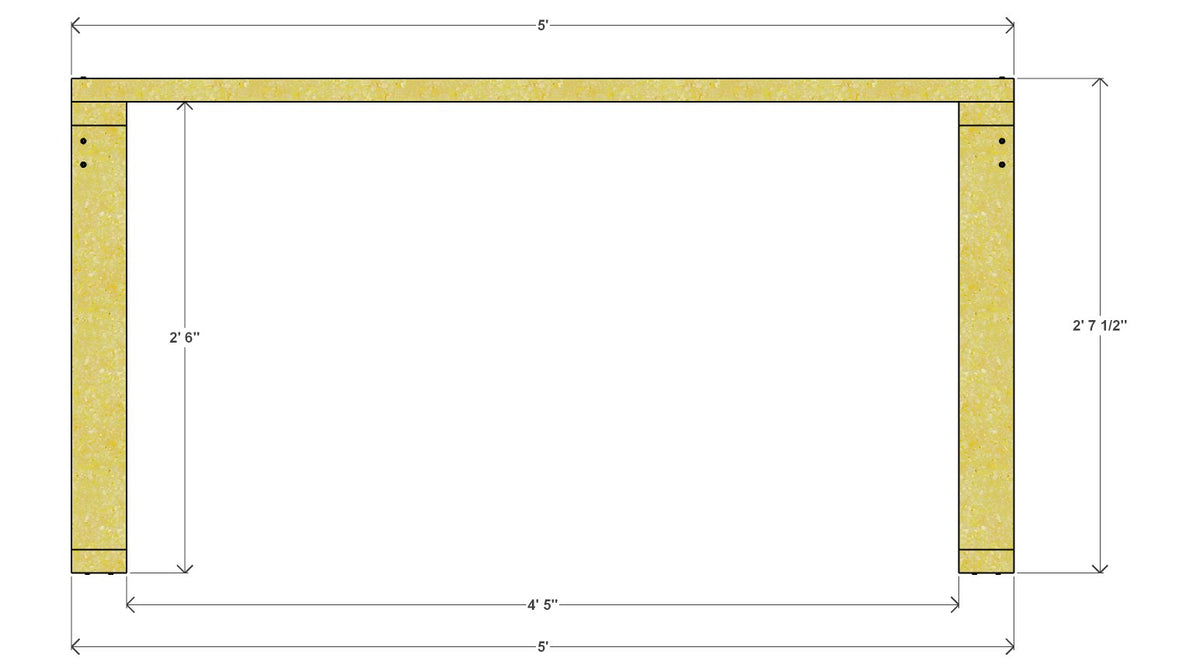

• Dimensioned front, side, top and 3D views
• Material shopping list and complete cutting list
• Nominal vs. actual lumber size chart
• 7 illustrated step-by-step assembly instructions
• Finishing, safety and care notes

Build steps

1. Assemble side frames for table
2. Add the upper supports for table
3. Install the tabletop boards for table
4. Assemble the two side frames
5. Attach the rear posts
6. Install the four seat boards
7. Install the three backrest boards

Materials

• Western Red Cedar Lumber 2"×4" – 13 pcs, 10 ft
• Western Red Cedar Lumber 1"×4" – 4 pcs, 10 ft
• Wood Screws 2-1/2" – 136 pcs
• Wood Screws 1-1/2" – 56 pcs

Recommended tools

Miter Saw, Jigsaw, Drill & Driver, Countersink Drill Bit, Clamps, Orbital Sander, Tape Measure, Speed Square, Paintbrushes

Delivery

After purchase we email you the PDF plan. Print it or use it on your phone or tablet in the workshop. For personal use only.
