The Haven Outdoor Lounge Set Plan

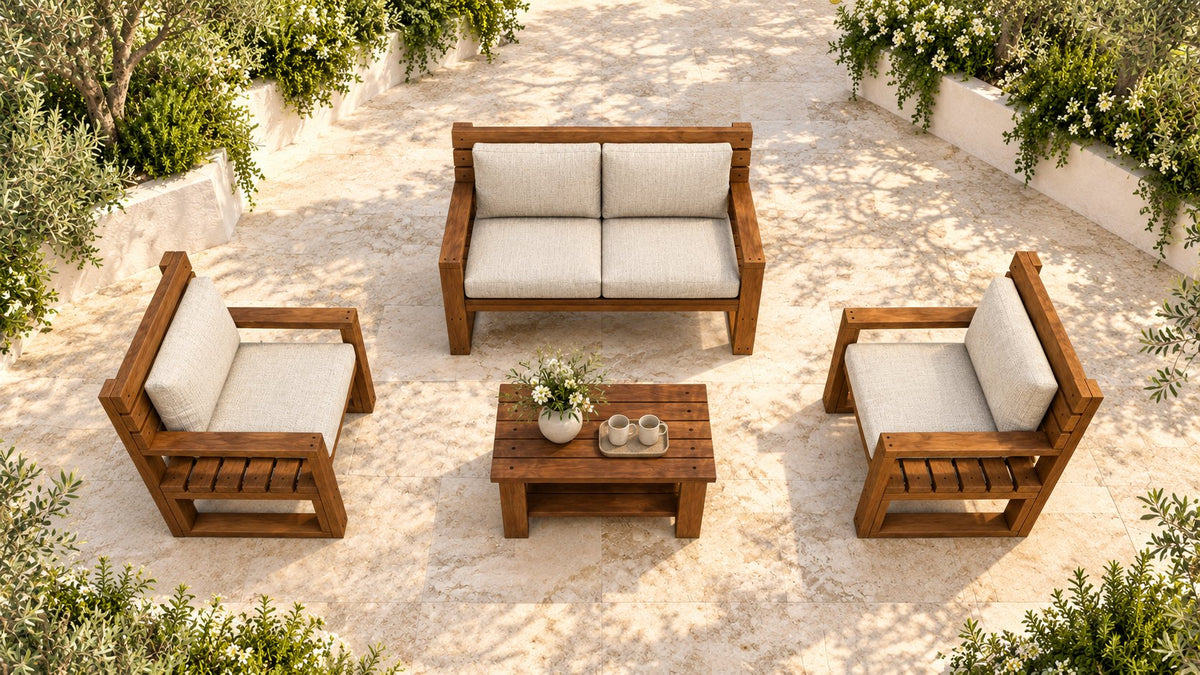

A complete patio lounge set with a loveseat, two armchairs and a matching coffee table. It's built from 2x4 and 1x4 lumber with cushions in standard sizes.

This is a digital DIY plan (PDF), not a finished product. You get clear, beginner-friendly drawings and instructions to build it yourself.

Plan details

• Overall size: Loveseat, 2 armchairs & coffee table
• Skill level: Beginner
• Estimated build time: 4–6 hours
• Format: 31-page PDF, 8.5" x 11", imperial units (feet & inches)

What's included

• Cover sheet with size, skill level and build time

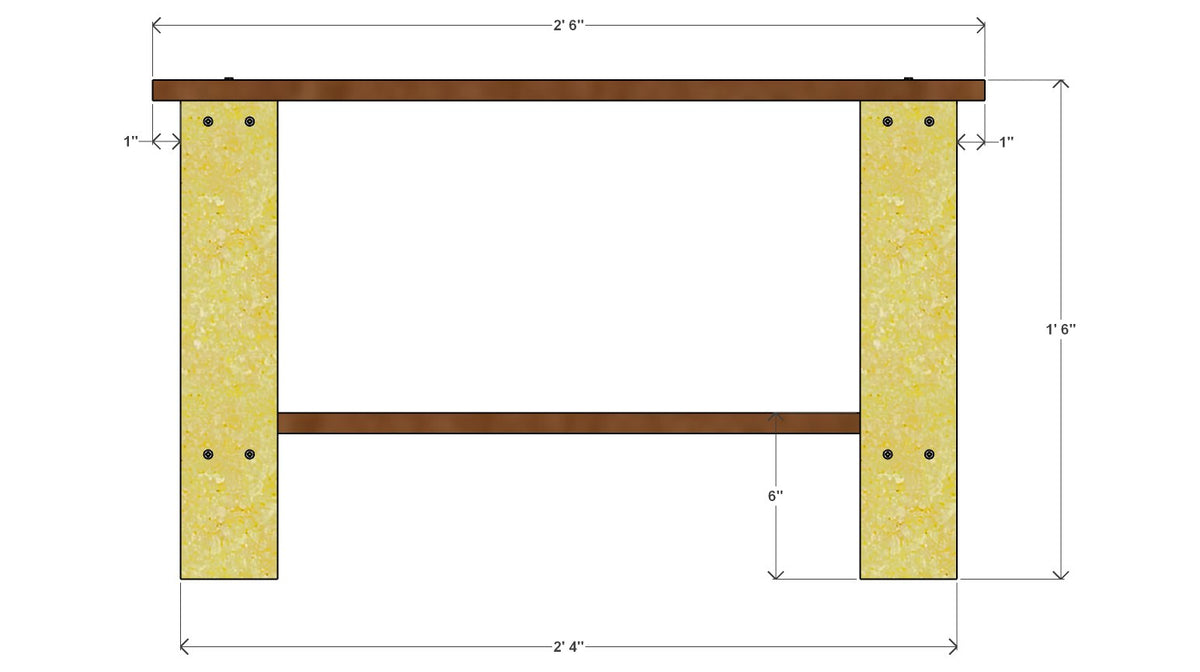

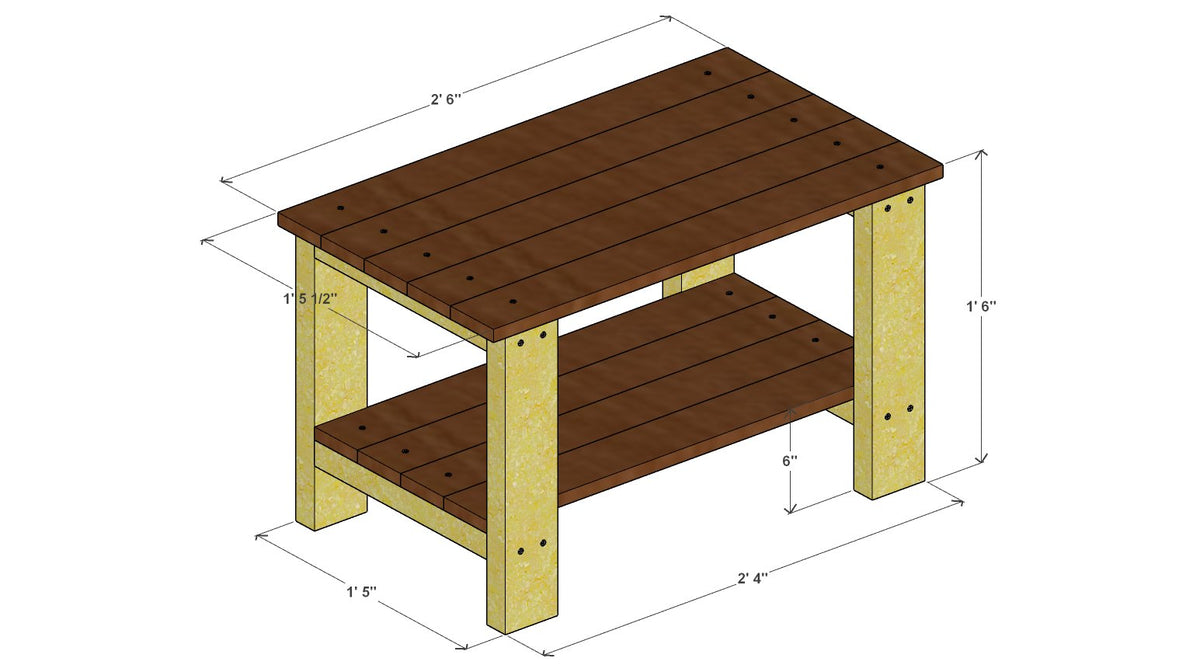

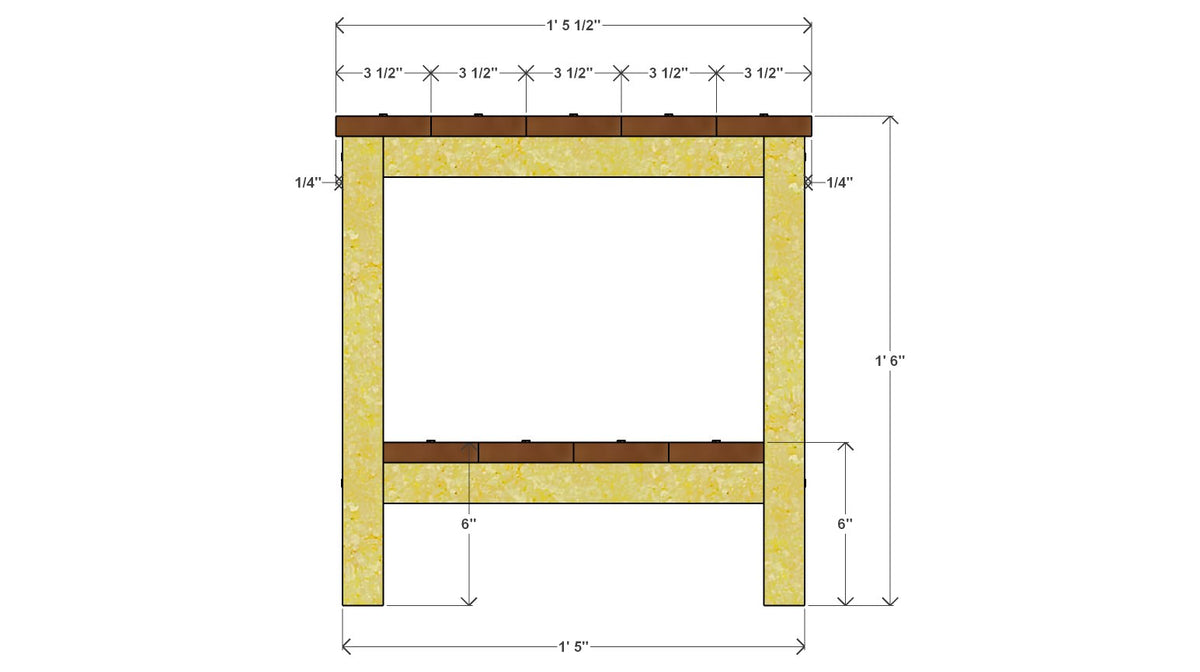

• Dimensioned front, side, top and 3D views
• Material shopping list and complete cutting list
• Nominal vs. actual lumber size chart
• 15 illustrated step-by-step assembly instructions
• Finishing, safety and care notes

Build steps

1. Assemble the two side frames for two seater
2. Attach the rear posts for two seater
3. Attach the front posts for two seater
4. Install the armrests for two seater
5. Install the six seat boards for two seater
6. Install the three backrest boards for two seater
7. Assemble the two side frames for one seater
8. Attach the rear posts for one seater
9. Attach the front posts for one seater
10. Install the armrests for one seater
11. Install the six seat boards for one seater
12. Install the three backrest boards for one seater
13. Assemble side frames for table
14. Install the tabletop boards for table
15. Install the lower shelf for table

Materials

• Western Red Cedar Lumber 2"×4" – 19 pcs, 10 ft
• Western Red Cedar Lumber 1"×4" – 3 pcs, 10 ft
• Wood Screws 1-1/2" – 18 pcs
• Wood Screws 2-1/2" – 190 pcs
• 24''x24''x4'' Outdoor Chair Cushions – 5 pcs

Recommended tools

Miter Saw, Jigsaw, Drill & Driver, Countersink Drill Bit, Clamps, Orbital Sander, Tape Measure, Speed Square, Paintbrushes

Delivery

After purchase we email you the PDF plan. Print it or use it on your phone or tablet in the workshop. For personal use only.
